Creative-Tube, 20 mm diameter, covered in RN01 Neutral Natural Linen fabric, flexible cable conduit
Creative-Tube is much more than just a fabric-covered conduit!
In fact, thanks to the metal filaments running through its entire length, Creative-Tube can take and maintain any shape. The only limit to the applications and uses of Creative-Tube will be your imagination!
The 20-millimetre diameter Creative-Tube in Natural Linen Neutral gets rid of all those unsightly plastic conduits running along your walls, and frees your imagination, allowing you to draw a trail of colour and shape on your walls and ceilings, without the rigid forms of metal pipes.
Thanks to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses for wall or ceiling lamps directly
- create a complete electrical system with sockets and switches that's perfect to show off, rather than hide in the walls!
You can use Creative-Tubes on the outside of walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321 Crush resistance: >750N over 5 cm at 20°C Impact resistance: (-15°C) after conditioning, 2kg hammer mass Temperature range: -5°C to +60°C Flame resistance: self-extinguishing VO Dielectric strength: < 2000V at 50Hz Insulation resistance: >100 mega ohms Diameter: 20 millimetres Colour: RN01 Natural Neutral Linen

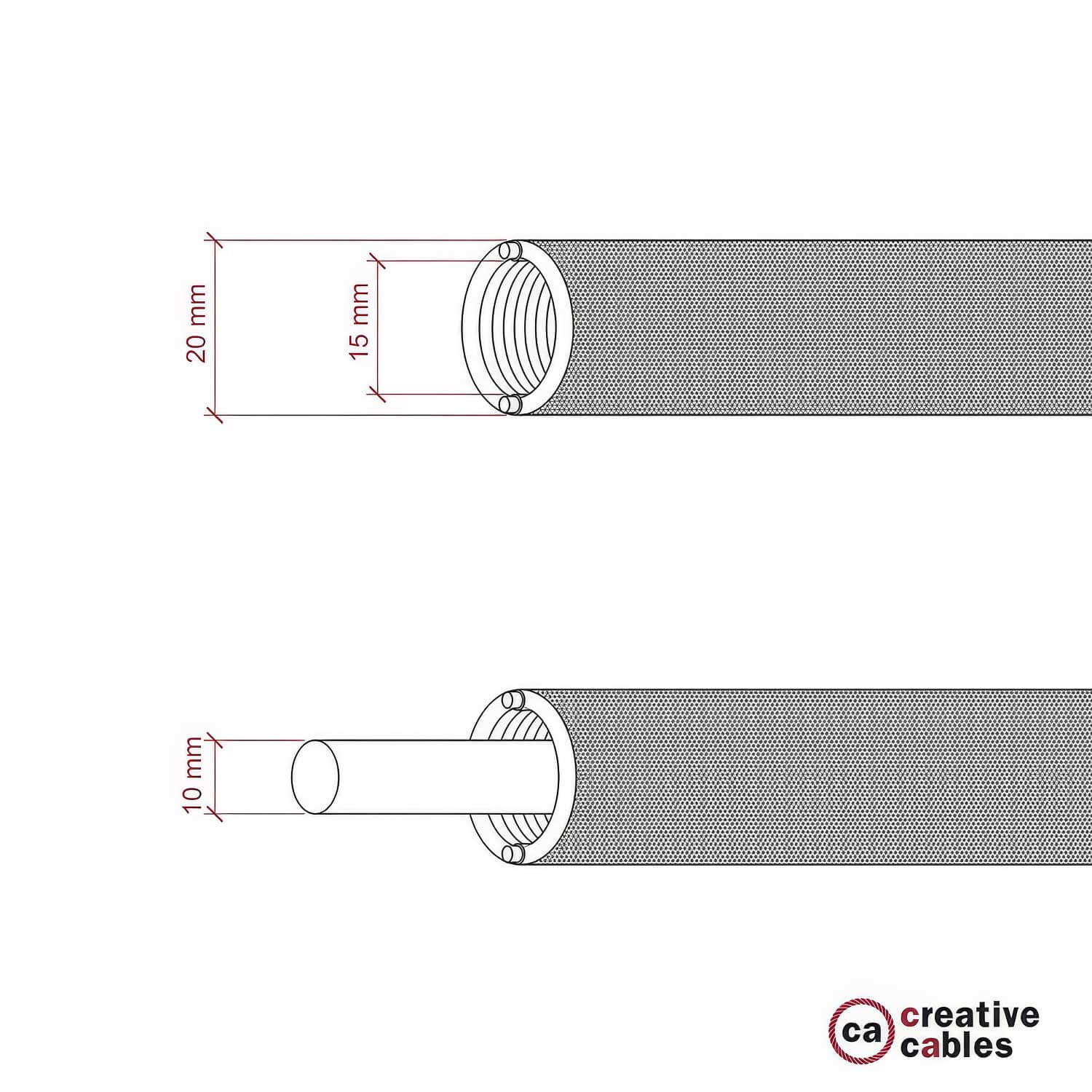

According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
Creative-Tube is much more than just a fabric-covered conduit!
In fact, thanks to the metal filaments running through its entire length, Creative-Tube can take and maintain any shape. The only limit to the applications and uses of Creative-Tube will be your imagination!
The 20-millimetre diameter Creative-Tube in Natural Linen Neutral gets rid of all those unsightly plastic conduits running along your walls, and frees your imagination, allowing you to draw a trail of colour and shape on your walls and ceilings, without the rigid forms of metal pipes.
Thanks to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses for wall or ceiling lamps directly
- create a complete electrical system with sockets and switches that's perfect to show off, rather than hide in the walls!
You can use Creative-Tubes on the outside of walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321 Crush resistance: >750N over 5 cm at 20°C Impact resistance: (-15°C) after conditioning, 2kg hammer mass Temperature range: -5°C to +60°C Flame resistance: self-extinguishing VO Dielectric strength: < 2000V at 50Hz Insulation resistance: >100 mega ohms Diameter: 20 millimetres Colour: RN01 Natural Neutral Linen
According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
Description
Creative-Tube is much more than just a fabric-covered conduit!
In fact, thanks to the metal filaments running through its entire length, Creative-Tube can take and maintain any shape. The only limit to the applications and uses of Creative-Tube will be your imagination!
The 20-millimetre diameter Creative-Tube in Natural Linen Neutral gets rid of all those unsightly plastic conduits running along your walls, and frees your imagination, allowing you to draw a trail of colour and shape on your walls and ceilings, without the rigid forms of metal pipes.
Thanks to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses for wall or ceiling lamps directly
- create a complete electrical system with sockets and switches that's perfect to show off, rather than hide in the walls!
You can use Creative-Tubes on the outside of walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321 Crush resistance: >750N over 5 cm at 20°C Impact resistance: (-15°C) after conditioning, 2kg hammer mass Temperature range: -5°C to +60°C Flame resistance: self-extinguishing VO Dielectric strength: < 2000V at 50Hz Insulation resistance: >100 mega ohms Diameter: 20 millimetres Colour: RN01 Natural Neutral Linen
According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
