Creative-Tube, 20 mm diameter, fabric-coated with Silk Effect RM01 White, mouldable conduit
Creative-Tube is much more than a simple fabric-covered conduit: thanks to the metal filaments running the entire length, Creative-Tube can take and hold any shape.

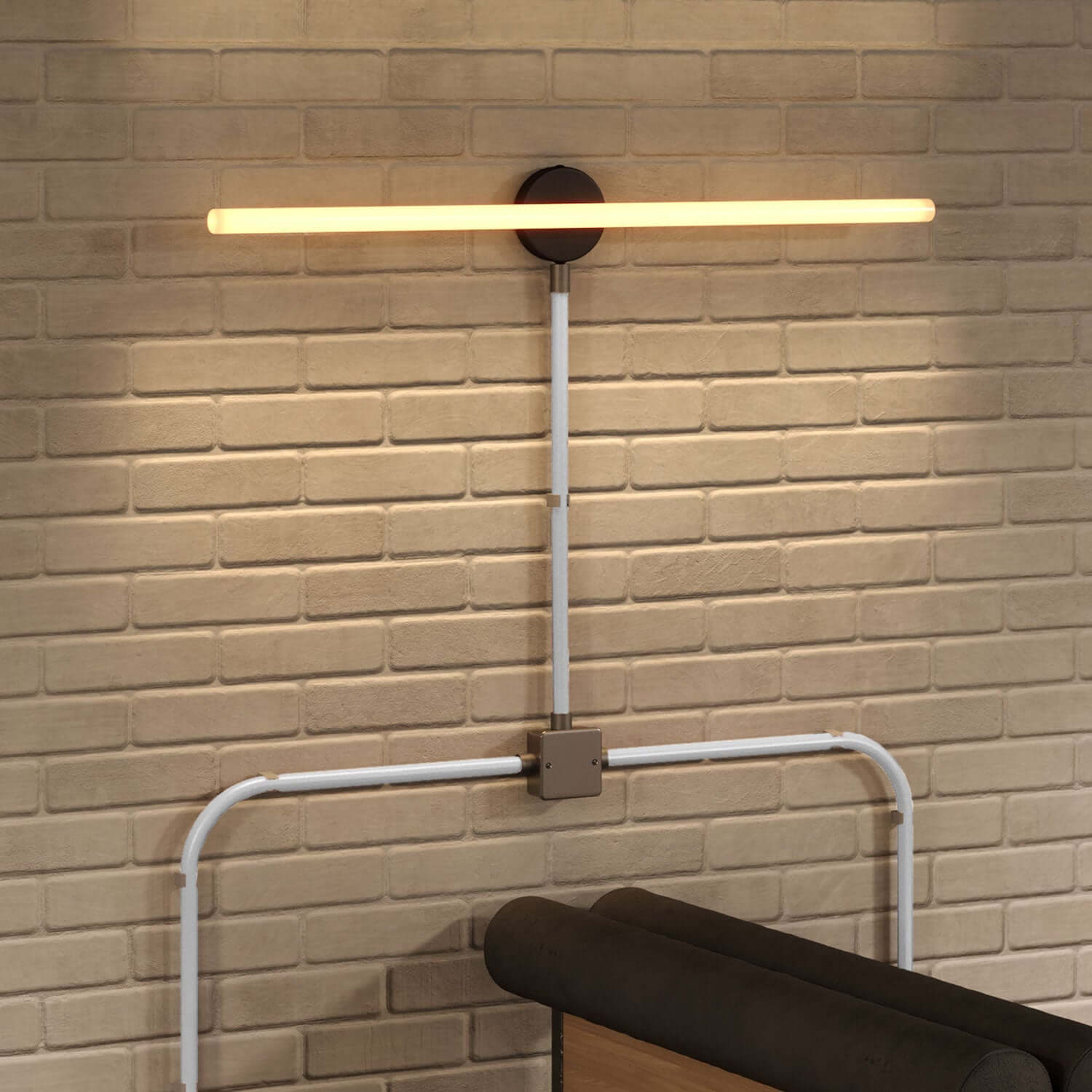

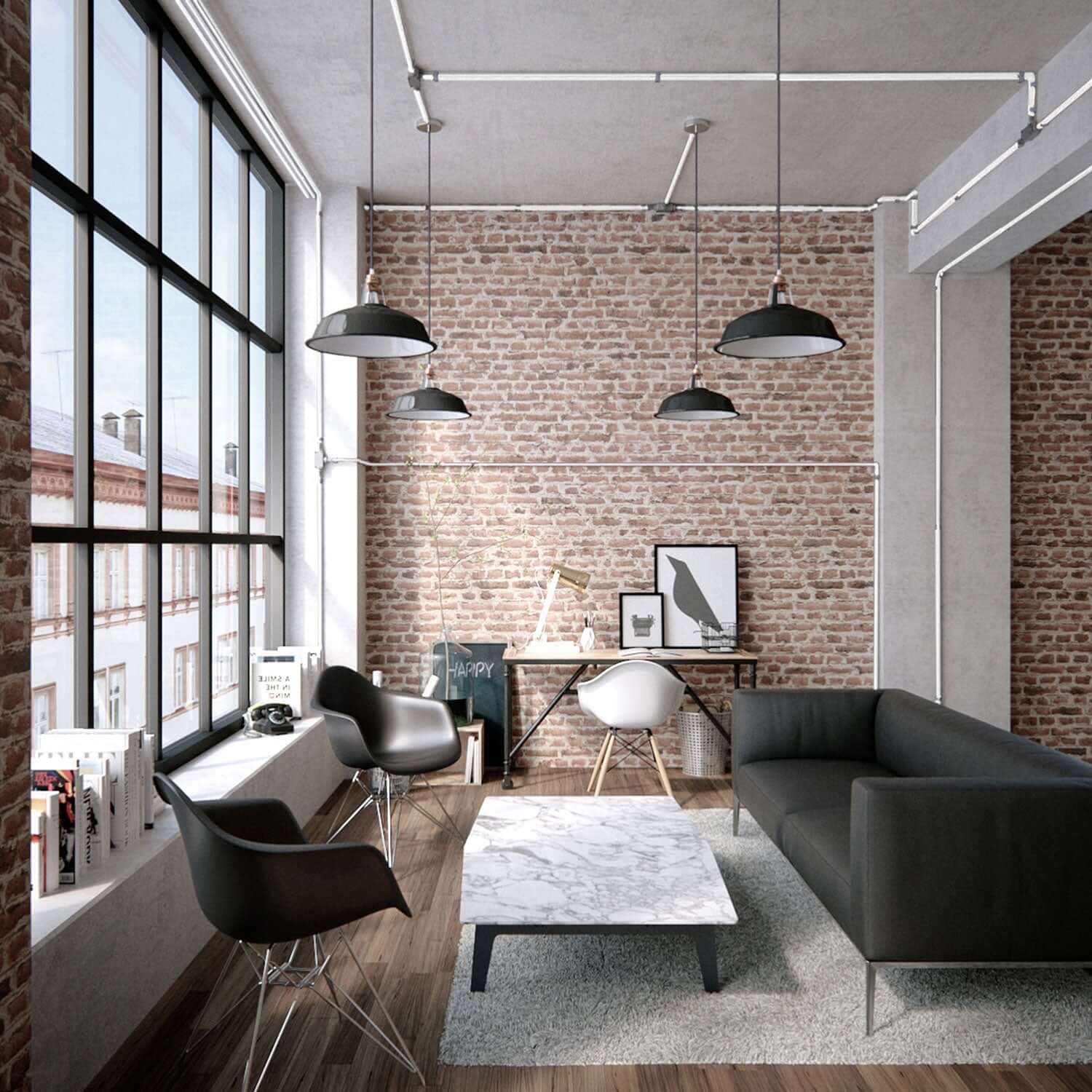

The 20-millimetre diameter Creative-Tube in Glossy White RM01 frees you from unsightly plastic conduits and lets you draw a line of colour and shape on walls and ceilings as you wish, without the rigidity of classic metal pipes.
Thanks also to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses for wall or ceiling lamps directly
- create a complete electrical system with sockets and switches that’s perfect to show off, rather than hide in the walls!
Creative-Tubes can be used on external walls. The internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321
Crush resistance: >750N over 5 cm at 20°C
Impact resistance: (-15°C) after conditioning. 2kg mass hammer
Temperature range: -5°C to +60°C
Flame resistance: self-extinguishing VO
Dielectric strength: < 2000V at 50Hz
Insulation resistance: >100 mega ohm

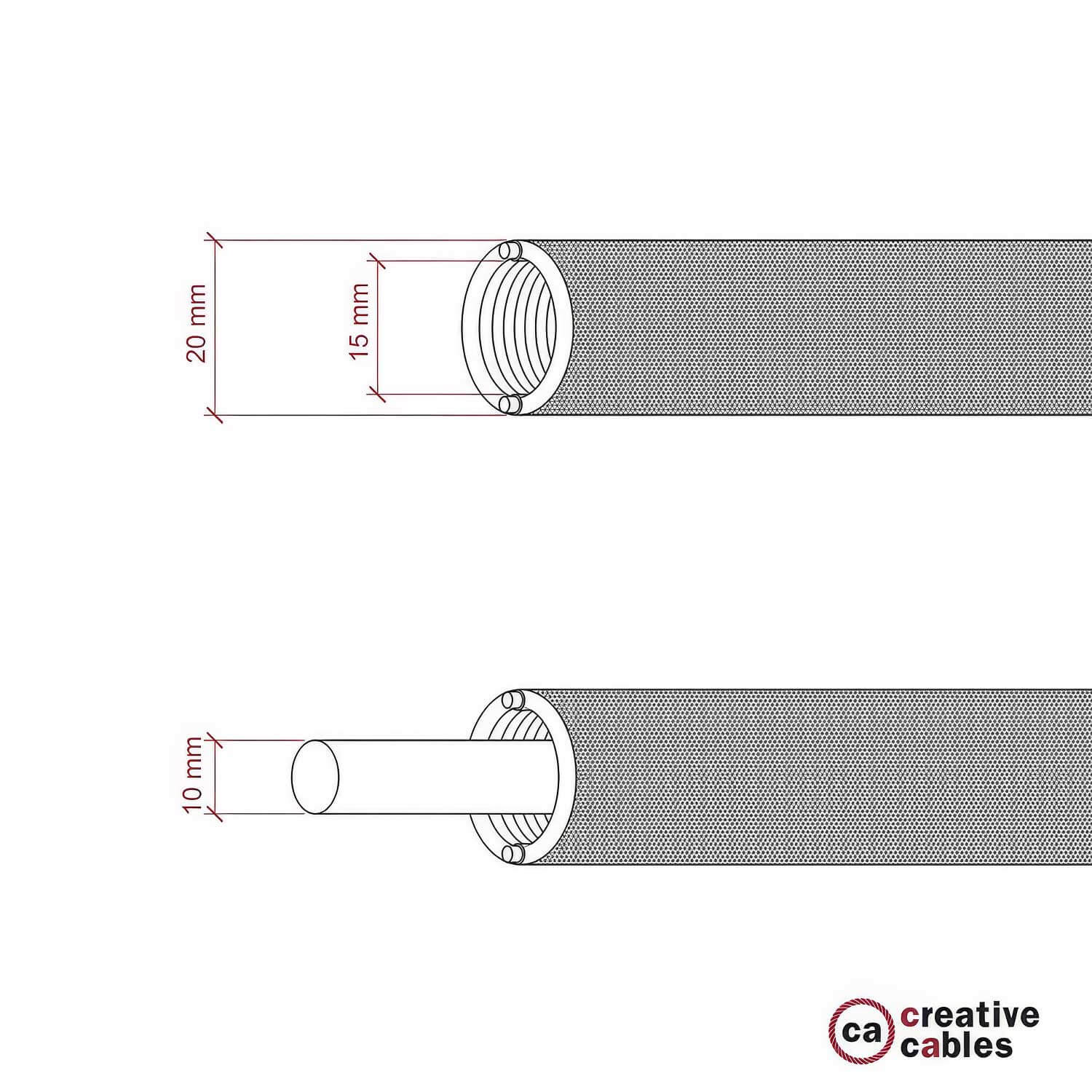

Diameter: 20 millimetres
Colour: RM01 Silk Effect White
According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
Creative-Tube is much more than a simple fabric-covered conduit: thanks to the metal filaments running the entire length, Creative-Tube can take and hold any shape.
The 20-millimetre diameter Creative-Tube in Glossy White RM01 frees you from unsightly plastic conduits and lets you draw a line of colour and shape on walls and ceilings as you wish, without the rigidity of classic metal pipes.
Thanks also to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses for wall or ceiling lamps directly
- create a complete electrical system with sockets and switches that’s perfect to show off, rather than hide in the walls!
Creative-Tubes can be used on external walls. The internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321
Crush resistance: >750N over 5 cm at 20°C
Impact resistance: (-15°C) after conditioning. 2kg mass hammer
Temperature range: -5°C to +60°C
Flame resistance: self-extinguishing VO
Dielectric strength: < 2000V at 50Hz
Insulation resistance: >100 mega ohm
Diameter: 20 millimetres
Colour: RM01 Silk Effect White
According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
